Get Instant Access to AZ-700 Practice Exam Questions [Q215-Q239]

QUESTION 215

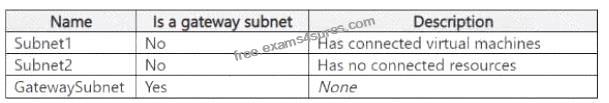

You have an Azure virtual network named VNet1 that contains the subnets shown in the following table.

You need to deploy an Azure application gateway named AppGW1 to VNetl To where can you deploy AppGW1?

QUESTION 216

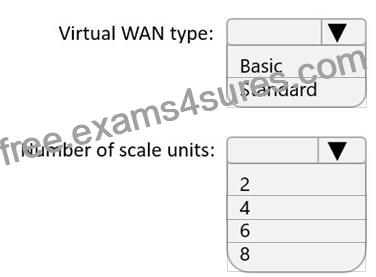

You plan to deploy Azure Virtual WAN.
You need to deploy a virtual WAN hub that meets the following requirements:
Supports 10 sites that will connect to the virtual WAN hub by using a Site-to-Site VPN connection Supports 8 Gbps of ExpressRoute traffic Minimizes costs What should you configure? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

QUESTION 217
You plan to publish a website that will use an FQDN of www.contoso.com. The website will be hosted by using the Azure App Service apps shown in the following table.

You plan to use Azure Traffic Manager to manage the routing of traffic for www.contoso.com between AS1 and AS2.
You need to ensure that Traffic Manager routes traffic for www.contoso.com.
Which DNS record should you create?

QUESTION 218
Task 7
You need to ensure that hosts on VNET2 can access hosts on both VNET1 and VNET3. The solution must prevent hosts on VNET1 and VNET3 from communicating through VNET2.

QUESTION 219
Your on-premises network contains two subnets named Subnet1 and Subnet2. Subnet2 contains a Hyper-V host that contains two virtual machines named VM1 and VM2. VM1 and VM2 are connected to Subnet2.
You have an Azure virtual network named VNet1 that contains GatewaySubnet and a subnet named VSubnet1. VNet1 is connected to the on-premises network by using a Site-to-Site (S2S) VPN connection.
You plan to migrate VM1 to VNet1 and maintain the existing IP address of VM1. VM2 will remain on Subnet2.
You need to prepare the environment to ensure that VM1 can communicate with VM2 once the migration is complete.

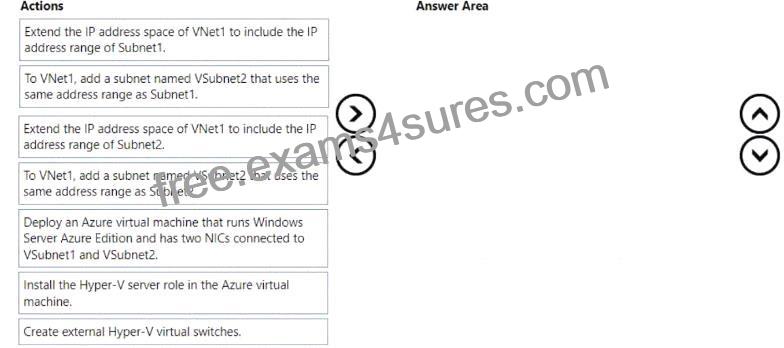

Which five actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.’

QUESTION 220
You have an Azure subscription that contains the virtual networks.shown in the following table.

You have a virtual machine named VM5 that has the following IP address configurations:
* IP address: 10.4.0.5
* Subnet mask:255.255.255.0
* Default gateway:10.4.0.1
* DNSserver:168.63.129.16
You have an Azure Private DNS zone named, fabrikam.com that contains the records shown in, the following table.

The virtual network links in the fabrikam.com DNS /one are configured as shown in the exhibit. (Click the Exhibit tab.) VMS fails to resolve the IP address for.appKfabrik3in.com.
For each of the following statements, select Yes if, the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.

QUESTION 221
Your on-premises network contains the subnets shown in the following table.

The network contains a firewall named FW1 that uses a public IP address of 131.107.100.200.

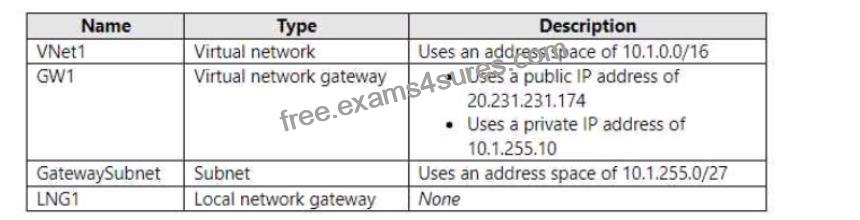

You have an Azure subscription that contains the resources shown in the following table.

You plan to configure a Site-to-Site (S2S) VPN named VPN1 that will connect GW1 to FW1.
You need to configure LNG1 to support VPN1. The solution must meet the following requirements:
* Ensure that the resources on Subnet1 and Subnet2 can communicate with the resources on VNe1l.
* Minimize administrative effort.

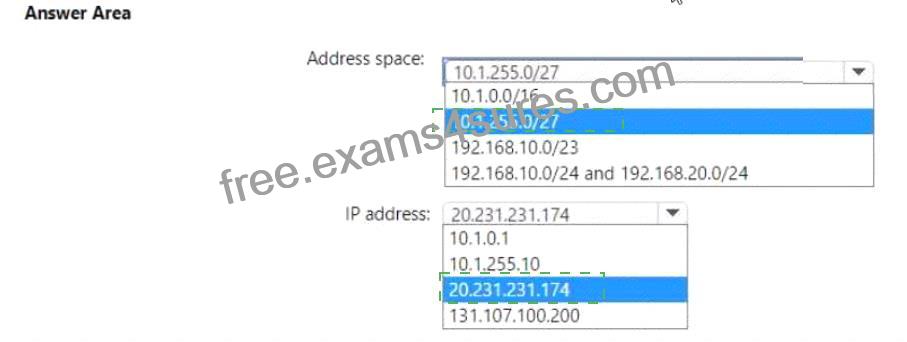

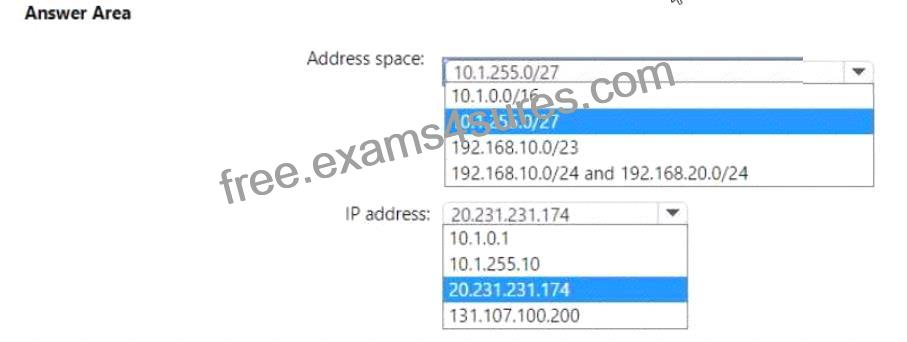

How should you configure LNG1? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

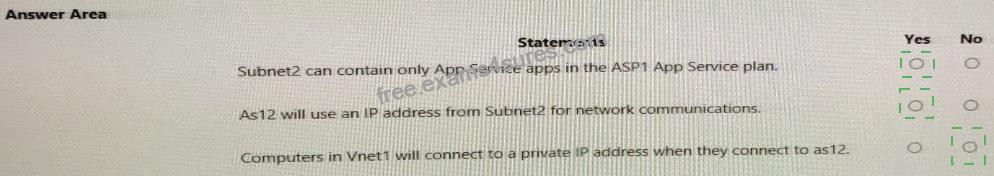

QUESTION 222
You have the Azure App Service app shown in the App Service exhibit.

The VNet Integration settings for as12 are configured as shown in the Vnet Integration exhibit.

The Private Endpoint connections settings for as12 are configured as shown in the Private Endpoint connections exhibit.

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.

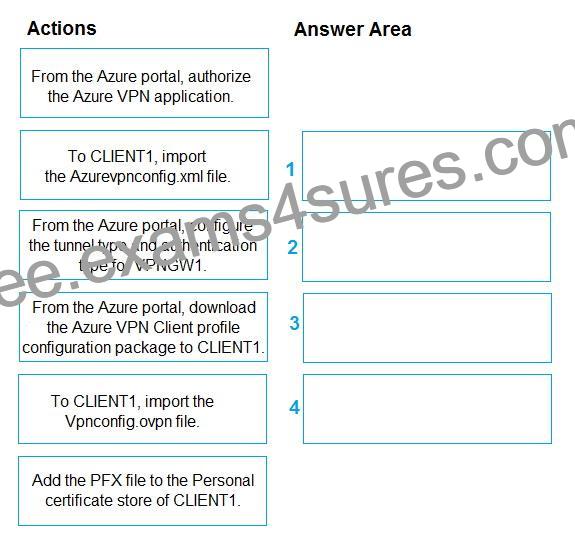

QUESTION 223
Drag and Drop Question
You have a computer named CLIENT1 that runs Windows 11 and has the Azure VPN Client installed.
You have an Azure virtual network gateway named VPNGW1.
You need to ensure that you can connect CLIENT1 to VPNGW1. The solution must support Microsoft Entra authentication.
Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer are and arrange them in the correct order.

QUESTION 224
You have a website that uses an FQDN of www.contoso.com. The DNS record tor www.contoso.com resolves to an on-premises web server.
You plan to migrate the website to an Azure web app named Web1. The website on Web1 will be published by using an Azure Front Door instance named ContosoFD1.
You build the website on Web1.
You plan to configure ContosoFD1 to publish the website for testing.

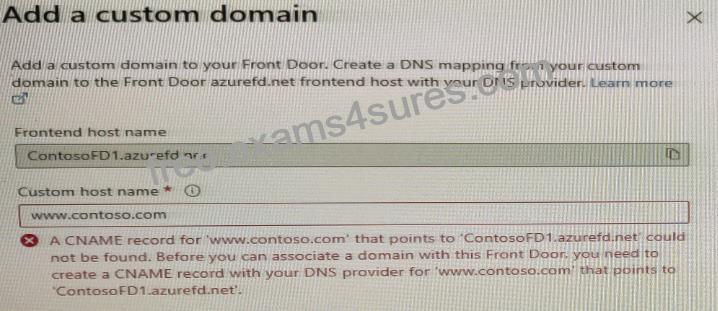

When you attempt to configure a custom domain for www.contoso.com on ContosoFD1, you receive the error message shown in the exhibit.

You need to test the website and ContosoFD1 without affecting user access to the on-premises web server.
Which record should you create in the contoso.com DNS domain?

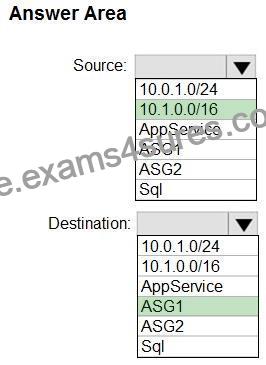

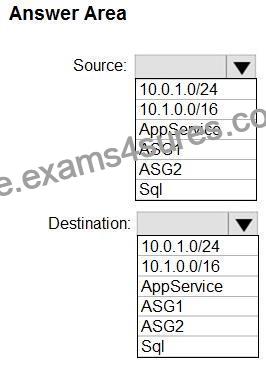

QUESTION 225
Hotspot Question
You have an Azure subscription that contains the resources shown in the following table:

Each quarter, you deploy five new virtual machines to host App1.
You need to add a rule to NSG1 to ensure that the virtual machines that host App1 can connect to SQL1 and SQL2. The solution must follow the principle of least privilege and minimize administrative effort.
How should you configure the source property and the destination property for the rule? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

QUESTION 226
You create NSG10 and NSG11 to meet the network security requirements.
For each of the following statements, select Yes it the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.

QUESTION 227
Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it as a result, these questions will not appear in the review screen.
You have an Azure subscription that contains an Azure Front Door Premium profile named AFD1 and an Azure Web Application Firewall (WAF) policy named WAF1. AFD1 is associated with WAF1.
You need to configure a rate limit for incoming requests to AFD1.
Solution: You configure a managed rule for WAF1.
Does this meet the goal?

QUESTION 228
You create NSG10 and NSG11 to meet the network security requirements.
For each of the following statements, select Yes it the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.

QUESTION 229
You have an Azure subscription that contains a single virtual network and a virtual network gateway.
You need to ensure that administrators can use Point-to-Site (P2S) VPN connections to access resources in the virtual network. The connections must be authenticated by Azure Active Directory (Azure AD).
What should you configure? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

QUESTION 230
You have an Azure subscription that contains four virtual machines. The virtual machines host an app named App1.
You deploy an Azure Standard Load Balancer named LB1 to load balance incoming HTTPS requests to App1.
You need to reduce how long it takes for LB1 to stop sending App1 traffic to failed servers. The solution must minimize administrative effort.
What should you modify?

QUESTION 231
You have an Azure subscription that contains a virtual network named VNet1. VNet1 contains the resources shown in the following table.

You need to publish App1 by using AG1 and a URL of https://app1.contoso.com. The solution must meet the following requirements:
* TLS connections must terminate on AG1.
* Minimize the number of targets in the backend pool of AG1.
* Minimize the number of deployed copies of the SSL certificate of App1.
How many locations should you import to the certificate, and how many targets should you add to the backend pool of AG1? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

QUESTION 232
You have an Azure subscription.
You have the on-premises sites shown the following table.

You plan to deploy Azure Virtual WAN.
You are evaluating Virtual WAN Basic and Virtual WAN Standard.
Which type of Virtual WAN can you use for each site? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

QUESTION 233
Task 6
You need to ensure that all hosts deployed to subnet3-2 connect to the internet by using the same static public IP address. The solution must minimize administrative effort when adding hosts to the subnet.

QUESTION 234
Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have an Azure application gateway that has Azure Web Application Firewall (WAF) enabled.
You configure the application gateway to direct traffic to the URL of the application gateway.
You attempt to access the URL and receive an HTTP 403 error. You view the diagnostics log and discover the following error.

You need to ensure that the URL is accessible through the application gateway.
Solution: You create a WAF policy exclusion request headers that contain 137.135.10.24.
Does this meet the goat?

QUESTION 235

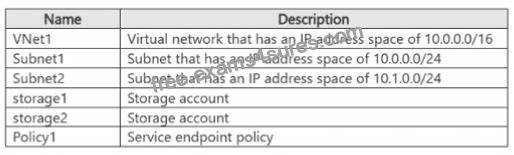

You have an Azure subscription that contains the resources shown in the following table.

Policy1 has the following settings:
* Service: Microsoft.Storage
* Allowed Resources: storage1
Subnet1 has the following settings:
* Name: Subnet1
* Subnet address range: 10.0.0.0/24
* NAT gateway: None
* Network security group: None
* Route table: None
* Service Endpoints
o Services: 0 selected
* Subnet Delegation
o Delegate subnet to a service: None
For each of the following statements, select yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.

QUESTION 236
You have two Azure subscriptions named Sub1 and Sub2. Sub1 contains a virtual machine named VM1.
You plan to make VM1 available to the resources in Sub2 by using Azure Private Link.
You need to ensure that the private link service can be configured to provide access to VM1.
What should you configure in Sub1 first?

QUESTION 237
You have an Azure subscription
You plan to use Azure Virtual WAN.
You need to deploy a virtual WAN hub that meets the following requirements:
* Supports 4 Gbps of Site-to-Site (S2S) VPN traffic
* Supports 8 Gbps of ExpressRoute traffic
* Minimizes costs
How many scale units should you configure? To answer select the appropriate options in the answer area.
NOTE Each correct selection is worth one point.

QUESTION 238
You configure a route table named RT1 that has the routes shown in the following table.

You have an Azure virtual network named Vnet1 that has the subnets shown in the following table.

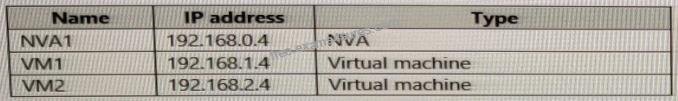

You have the resources shown in the following table.

Vnet1 connects to an ExpressRoute circuit. The on-premises router advertises the following routes:
* 0.0.0.0/0
* 10.0.0.0/16

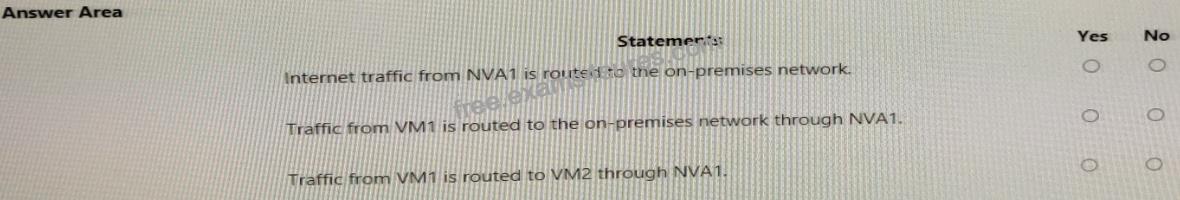

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

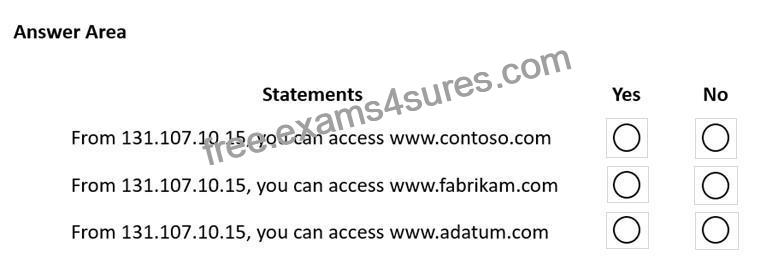

QUESTION 239
Hotspot Question
You have an Azure application gateway named AppGW1 that provides access to the following hosts:
– www.adatum.com
– www.contoso.com
– www.fabrikam.com
AppGW1 has the listeners shown in the following table.

You create Azure Web Application Firewall (WAF) policies for AppGW1 as shown in the following table.

For each of the following statements, select Yes of the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
